2. Create an Array of Files Using a Code Step

Introduction

In our existing workflow, the input we receive from the form contains a single string that holds file information. This might include one file, two files, or even a dynamic number of files, depending on what the user submitted.

We can see this if we "Test the trigger" and see the "File Upload" data variable that conatins teh files:

However, to properly process these files—download them, upload them to a data store location, and perform actions for each - we need to convert this string into an array of files.

This is exactly where the Code Step comes in. With just a few lines of JQ code, we can split the string and generate an array that the workflow can loop through.

What Does the Input Data Look Like?

• Raw Input (String):
  "<a href=\"https://www.jotform.com/uploads/christsogas/250353395672057/6230247055311644125/back-of-card-3.jpg\" target=\"_blank\" title=\"back-of-card-3.jpg\">back-of-card-3.jpg</a><br><a href=\"https://www.jotform.com/uploads/christsogas/250353395672057/6230247055311644125/insurance-front.png\" target=\"_blank\" title=\"insurance-front.png\">insurance-front.png</a>"

• What We Need (Array):

[
"https://www.jotform.com/uploads/christsogas/250353395672057/6230247055311644125/insurance-front.png",
"https://www.jotform.com/uploads/christsogas/250353395672057/6230247055311644125/back-of-card-3.jpg",
]

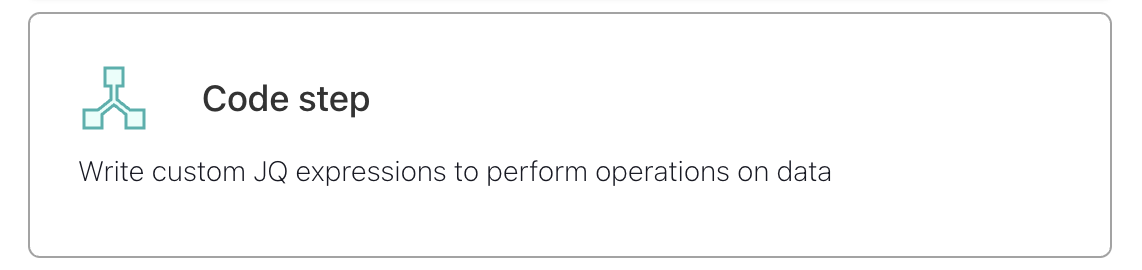

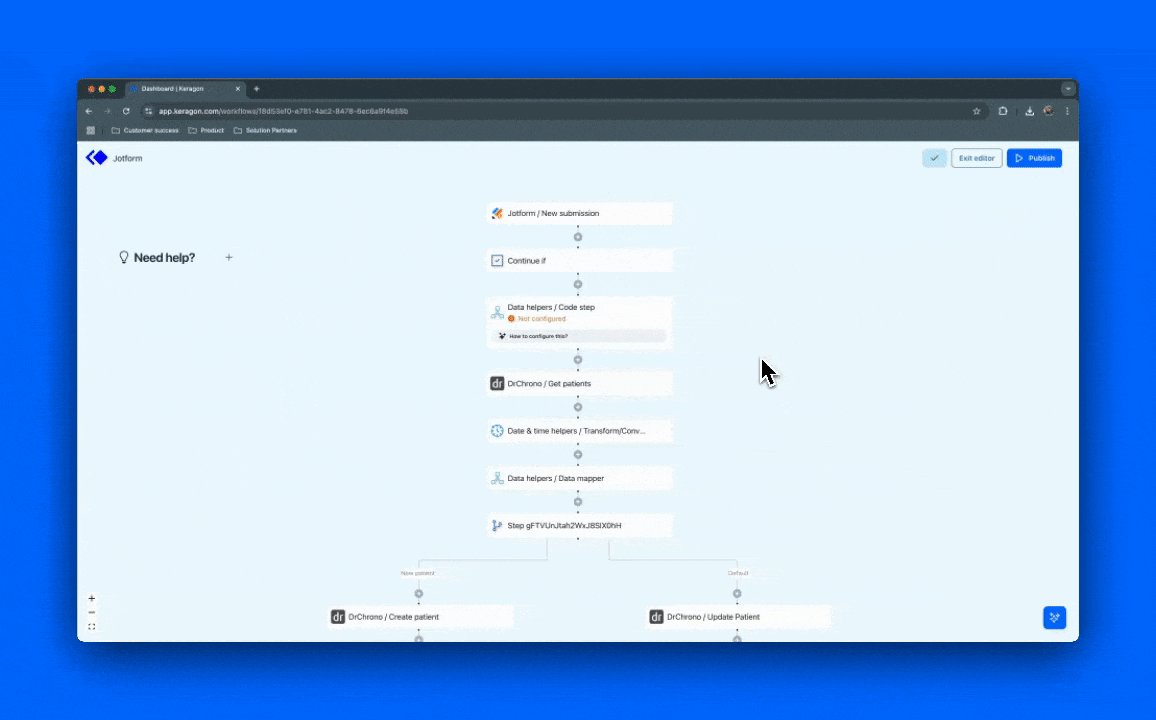

Step 1: Add a Code Step

1. Click the ➕ icon after the "Continue if" action.

2. Navigate to Helpers then Data Helpers and then Code Step.

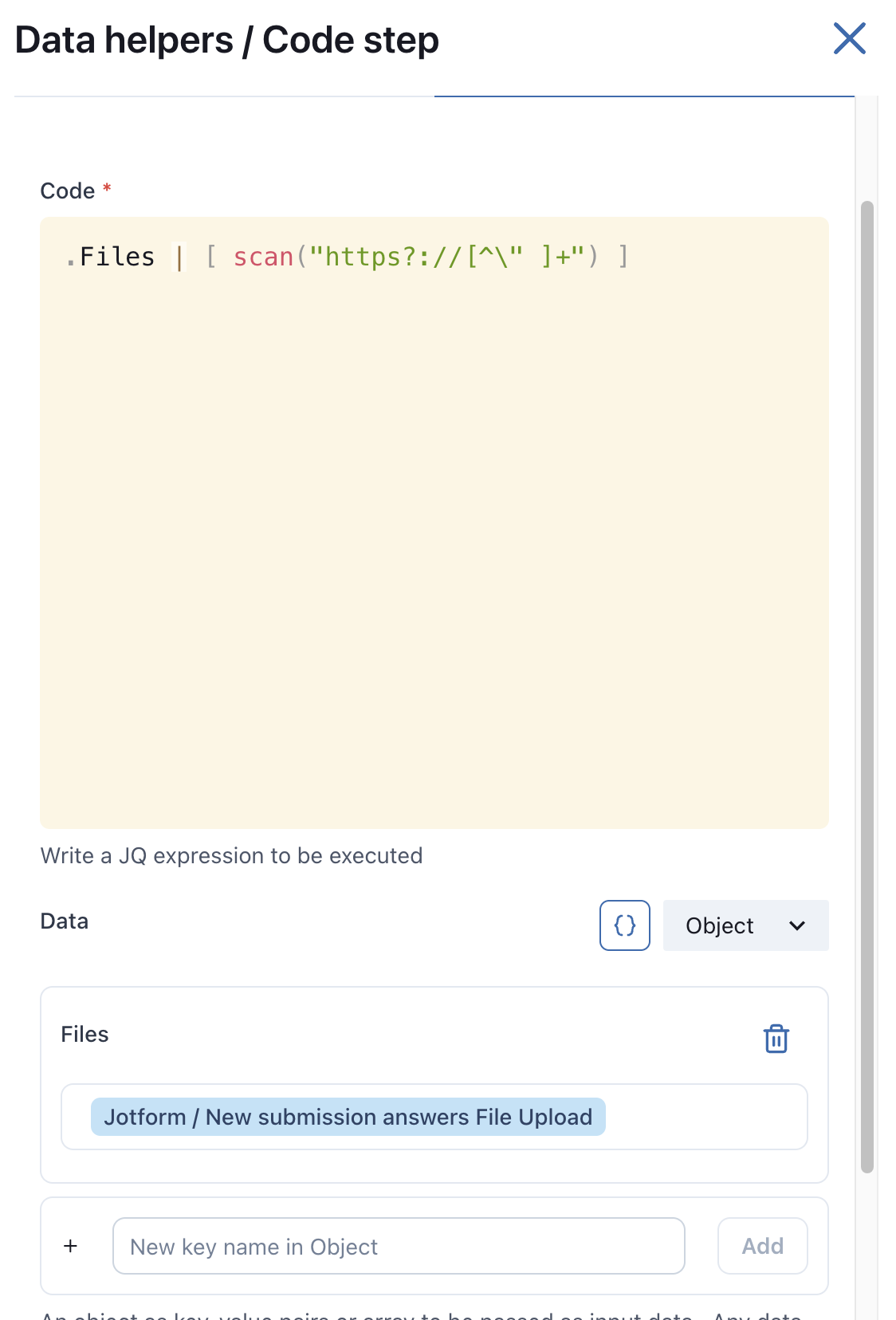

Step 2: Write the Code to Split the String

Before writing the code, let’s map the input data correctly:

1. In the Code Step, define a data variable that we will reference it to our code, for example, name it files.

2. Map this variable to the File Upload field from the Jotform trigger.


Now, let’s write the code to extract the URLs from the raw HTML string provided by Jotform.

.Files | [ scan("https?://[^\" ]+") ]

Step 3: Test the Code Step

1. Click Test Step to run the code and verify the output.

2. Confirm that the output is a clean array of file URLs.

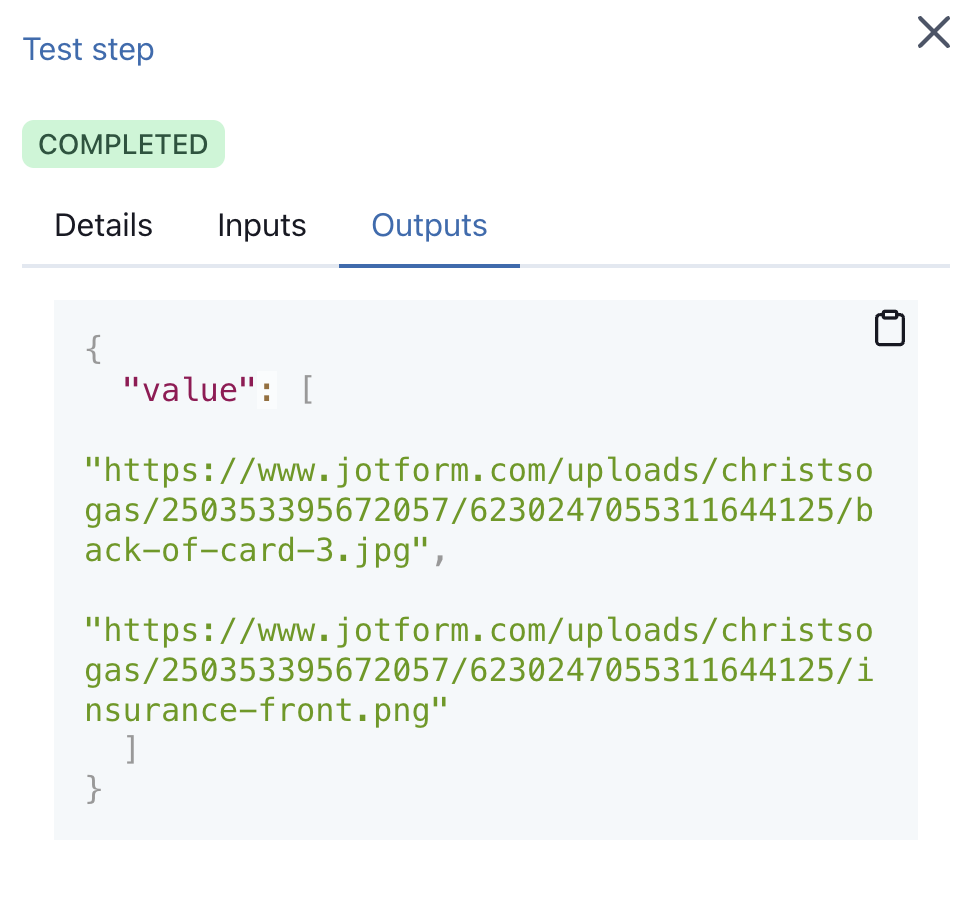

Success!

After testing our step we can see that the ouput is an array with all the file URLs
